Ford F-150 Lightning as Home Backup Generator: The Lowdown on What It Takes (Part 1) and What It Could Give (Part 2)

Word on the internet has it that Ford will open their ordering process for the F-150 Lightning this Thursday, January 6, 2022. It seems a good time to do a deeper dive on Ford’s home backup power option available for their much-awaited electric pickup truck.

Image from Ford

This is Part 1 of a two-part post. Part 1 discusses the specifics how much this option will cost, how it will work, and can it live up to Ford’s promises.

Part 2 will discuss other things you can do with a big electric truck’s battery, to both help your community and save some money for yourself. It’s called Vehicle-to-Grid (V2G) and it could be coming to your neighborhood sooner than you think.

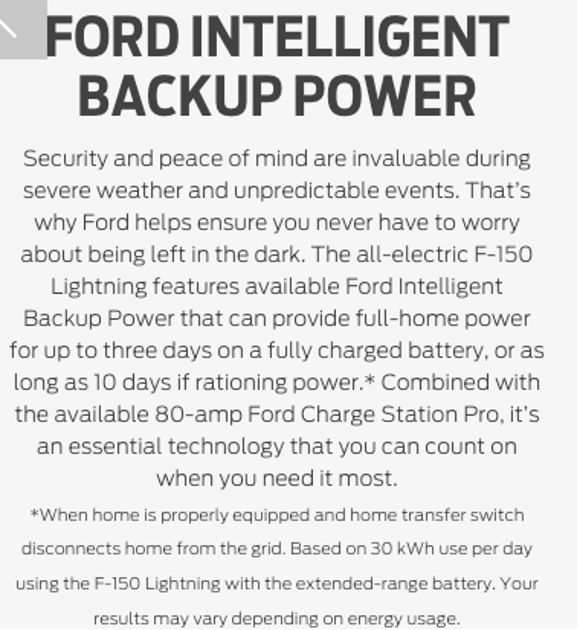

Here’s the home backup promise on Ford’s website:

In Part 1, each part of this promise will be discussed. In Part 2, we’ll learn how one SW Colorado rural electrical co-op plans to work with customers wanting to use the back-up power feature to provide benefits not just to EV owners, but to all co-op customers.

The Three Things You Need to Use the Ford F-150 Lightning as Backup Power For Your Home

Extended Range Battery

The backup power option is not available for all F-150 Lightning models. In particular, it will not be available on their lowest priced PRO model, which has a base price of $40,000. To take advantage of the backup power option, you must purchase an extended range battery model, the lowest cost of which appears to be the $74,000 XLT.

80-amp Ford Charge Station Pro

Ford’s website indicates the 80-amp Ford Charge Station Pro comes standard with extended range battery models. The Charge Station Pro is an extra piece of equipment which will allow your F-150 Lightning to both draw electricity FROM the power lines feeding your house to fill up the truck’s battery AND allow it SEND electricity INTO your house when those power lines are down. It is what’s known as a bi-directional charger. It allows peak charging power of 19.2 kW, much higher than the typical 7 kW a home Level 2 charger provides.

The 32-amp mobile charger which comes with all the F-150 Lightning models will also be included. This charger sends electricity in just one direction: from a power outlet to the truck’s battery. The charger is delivered, coiled neatly in a canvas travel case, as an electrical cord with a charge plug on one end. At the other end there is a choice of two adapters, one you can use to plug into a regular 120V outlet and another you can plug into a 240V outlet.

Good for emergencies away from home, too.

You can use the 32-amp charger wherever there is an outlet, from a regular 120V outlet on a friend’s porch to an electrical hook-up at an RV campground, which delivers as much power as a Level 2 charger.

Carrying this mobile charger in the truck with you could come in handy if you wind up stuck on any road that has closed due to winter storm conditions (as recently happened in Virginia) or an accident. If you can get off the highway, you could plug into any wall outlet (120 V) and heat your vehicle without running down the battery until traffic was able to move again. If you have an F-150 and a full battery, other EVs could plug into your truck’s 120V outlets to run their heaters until traffic gets moving again.

Electrical work done at your house

To use the home backup feature, you will need to get a professional electrician to install the 80-amp Ford Charge Station Pro and an automatic transfer switch at your house. The transfer switch automatically disconnects your home from the grid when the power goes down. That is necessary so your F-150 does not feed battery power back out on the power lines at your house during a power outage, which could cause a severe hazard to power company workers working on the lines.

You will need an 80-amp circuit installed to serve the Charge Station Pro. This won’t be a problem for most homes, but some with older electrical systems may need to upgrade their service with their electric company to carry that many amps.

In May 2021, Ford announced they had partnered with a company called Sunrun to:

facilitate the installation of Ford’s charging stations and energy integration system for residential customers.

https://www.pv-tech.org/ford-selects-sunrun-as-installation-partner-to-make-new-f-150-lightning-backup-power-source/

At Sunrun’s website, they list all of the Four Corners states except Utah as states where they operate. I am not aware if Sunrun currently operates in the Four Corners area. Before your F-150 Lightning order goes to production, you’ll want to confirm what company, Sunrun or a solar contractor local to you, would be able to work with you to install the 80-amp Charge Station Pro and install a new, or modify an existing, home solar system.

Does your electric company get involved in any of this?

No. It is basically the same as if you were adding a new electric appliance to your home. You usually don’t have to notify your electric company to do that. However, the electrician who does the installation work at your house will check to be sure your current electrical panel and service can handle the amount of power the F-150 Lightning would both pull from and push into your home’s wiring. They will let you know if any upgrades need to be made, and if so, how much they will cost.

Can the F-150 Lightning really supply my home with electricity for up to 10 days?

Yes. Ford recently announced the F-150 Lightning extended range battery will have a capacity of 131 kilowatt hours. For comparison, a typical Tesla home battery used for home backup power holds about 13.5 kWh. However, remember any energy your home uses out of the truck’s battery will decrease the number of miles the truck will be able to drive before getting re-charged.

If your home has solar, you may be able to modify your electric service so the solar array could send charge into the F-150 Lightning’s battery during a power outage, along with powering your other household electric needs. Your solar array would need to be sized to provide enough power to cover both your home’s needs and have power to spare to supply the truck with extra energy to allow you to drive it around during the blackout, if needed.

When Will I Get My F-150 Lightning?

Ford received more than 200,000 reservations for the Lightning, which were made at a cost of $100 each. Starting in January 2022, they will begin sending invitations to the reservation holders to order at staggered times. If the system works as it did for the Mustang Mach e, it will cost $1,000 to place an order. Once the order is placed, it will likely take 6 months to a year before you actually get the truck. According to communication sent recently by Ford to reservation holders:

Now, this kind of demand means many of you won’t get a 2022 F‑150 Lightning™ truck, but rest assured we will hold your reservation so you’ll have a chance to order a future model year.

Ford communication to F-150 Lightning reservation holders

Stay tuned for Part 2 of this post. I plan to get it published in a week or two.

Part 2 will discuss other things you can do with a big electric truck’s battery, to both help your community and save some money for yourself. It’s called Vehicle to Grid and it could be coming to your neighborhood sooner than you think.
